SALES PACK : 1 PCS DIGITAL MULTI METER

TITLE : Digital Ac Clamp Meter Multimeter  Digital Clamp Meter Digital Multimeter Digital Multimeters meter with LCD display Digital Multimeter (2000 Counts) Digital Clamp Ampere AC DC Voltage Multi Meter Current OHM Tester (DT-266)

CATEGORY : CURRENT TESTER

MATERIAL : PLASTIC

BULLET POINTS :

• Jaw Size: 50 millimeter or 2.0 inch
• Tests AC or DC voltage, AC current and resistance
• Diode check and continuity test
• Data hold
• Salient features: AC 1000 Amp. Clamp Meter AC 750 Volt & DC 1000 Volt Resistance & Continuity Buzzer 2000 Count Display & Jaw Size 50 mm Data Hold & Manual Range Selection 1 X 9V. Battery

DESCRIPTION :

Features

• Display: 2000 counts
• Jaw Opening: Φ50mm/2.0"
• Continuity Buzzer: <100Ω
• Data Hold
• Low Battery Display

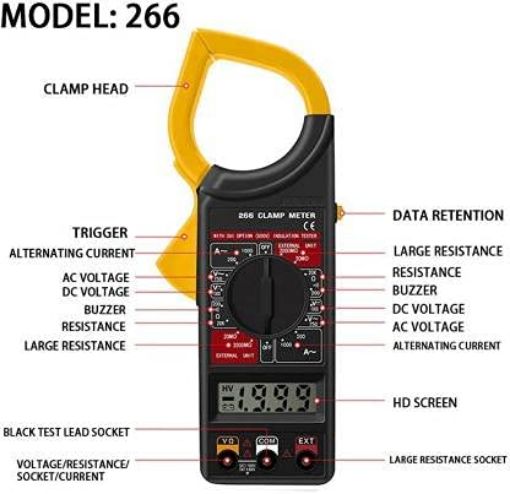

M266 Digital AC Clamp Meter

- Display: 3 1/2 digit LCD, with automatic polarity indication.

- Terminal and Earth Ground: 1000V DC or 750V rms AC (sine)

- Measuring Method: Dual-slope integration A-D converter

- Overrange Indication: " 1 " Figure only in the display

- Polarity Indication: " - " displayed for negative polarity

- Operating Temperature: 0℃ to 40℃ (32℉ to 104℉)

- Storage Temperature: -10℃ to 50℃ (14℉ to 122℉)

- Power: 9V alkaline or carbon-zinc battery(NEDA 1604)

- Accessories: Operating manual, set of test leads

- Low Battery Indication: " BAT " to left of display

- Optional Accessories: Thermocouple (K-type)

- Dimension:90(W) x 230(D) x 43(H) mm

- Weight: 320g (including battery)

- Safety Rating: CE(EMC+LVD) ETL CAT III 600V CAT.II 1000V

USES : MEASURING
